Product Details

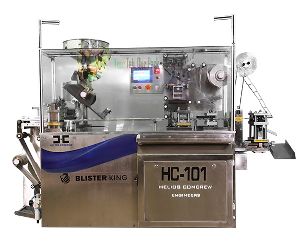

| Model | HC-101 |
| Approximate weight of Machine | 2500 KG |
| Machine Length*Width*Height | 3690 mm * 1050 mm* 2061 mm |
| Power Requirement | 3 Phase, 7.5 Kw, 50 Hz, 4 Wire |
| Chilled Water Requirement | 300 Litters of Chilled Water / Hour At 16°C Temperature |
| Additional Safety | Air Dryer, Voltage Stabilizer |
| Compressed Air Requirement | Dry Air with 6 Bar Continuous Pressure |
| Download |  View |
Technical Data
| Description | (ALU ALU) Cold Forming | (PVC ALU) Thermo Forming |
| Base Foil Width | Aluminium 240 mm | PVC/PVDC/ACLAR 240 mm |
| Base Foil Thickness | 0.13 mm | 0.25-0.4 mm |
| Base Foil Reel Diameter | 440 mm MAX | 440 mm Max |
| Sealing Foil Width | Aluminium 240 mm | Aluminium 240 mm |
| Sealing Foil Thickness | 0.025 mm | 0.025 mm |
| Sealing Foil Diameter | 210 mm Max | 210 mm Max |
| Max. Packet Forming Area | 230*150 mm | 230*150 mm |
| Max. Forming Depth | 10 mm | 16 mm |
| Output | 40 Strokes/Minute | 40 Strokes/Minute |
Pulse Features
| Packing Speed | Calibrated Speed of 40 Strokes / Minute in 240 mm Format Area Machine |
| Web Indexing | Servo Based System |
| Feeding | Servo Based System |
| Man Machine Interface | Ergonomically and friendly touch screen operation |
| Scrap Handling | Scrap Shredder (Reduces Scrap Handling time) |
| Machine Guards | Stainless Steel & Polycarbonate |
