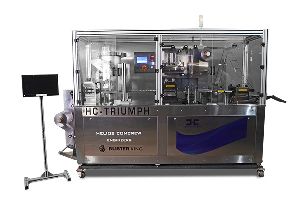

Double Track Alu Alu Blister Packing Machine

Double Track Alu Alu Blister Packing Machine
Business Type Manufacturer, Exporter, Supplier, Retailer
Approximate weight of Machine 2500 KG
Machine Length*Width*Height 3690 mm * 1050 mm* 2061 mm
Power Requirement 3 Phase, 7.5 Kw, 50 Hz, 4 Wire
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Chilled Water Requirement
300 Litters of Chilled Water / Hour At 16°C Temperature
Additional Safety
Air Dryer, Voltage Stabilizer
Compressed Air Requirement
Dry Air with 6 Bar Continuous Pressure
Model
HC-TRIUMPH
Download
Optional Feature:
  • Perforation
  • Embossing
  • All in one Package (ALU-ALU MACHINE WITH PVC ATTACHMENT)
  • SP-Feeding System
Read More...

Yes! I am interested


Technical Data

Description (ALU ALU) Cold Forming (PVC ALU) Thermo Forming
Base Foil Width Aluminium 240 mm PVC/PVDC/ACLAR 240 mm
Base Foil Thickness 0.13 mm 0.25-0.4 mm
Base Foil Reel Diameter 440 mm MAX 440 mm Max
Sealing Foil Width Aluminium 240 mm Aluminium 240 mm
Sealing Foil Thickness 0.025 mm 0.025 mm
Sealing Foil Diameter 210 mm Max 210 mm Max
Max. Packet Forming Area 230*150 mm 230*150 mm
Max. Forming Depth 10 mm 16 mm
Output 40 Strokes/Minute 40 Strokes/Minute

Pulse Features

Packing Speed Calibrated Speed of 40 Strokes / Minute in 240 mm Format Area Machine
Web Indexing Servo Based System
Feeding Servo Based System
Man Machine Interface Ergonomically and friendly touch screen operation
Scrap Handling Scrap Shredder (Reduces Scrap Handling time)
Machine Guards Stainless Steel & Polycarbonate
